分析某软件登录逻辑以及协议复现

本贴仅作技术交流，如有侵权请在Github的issue联系我立即删帖

工具准备：Pixel XL // 该软件不支持模拟器

雷电APP（脱壳用，不会脱壳，哭）

frida

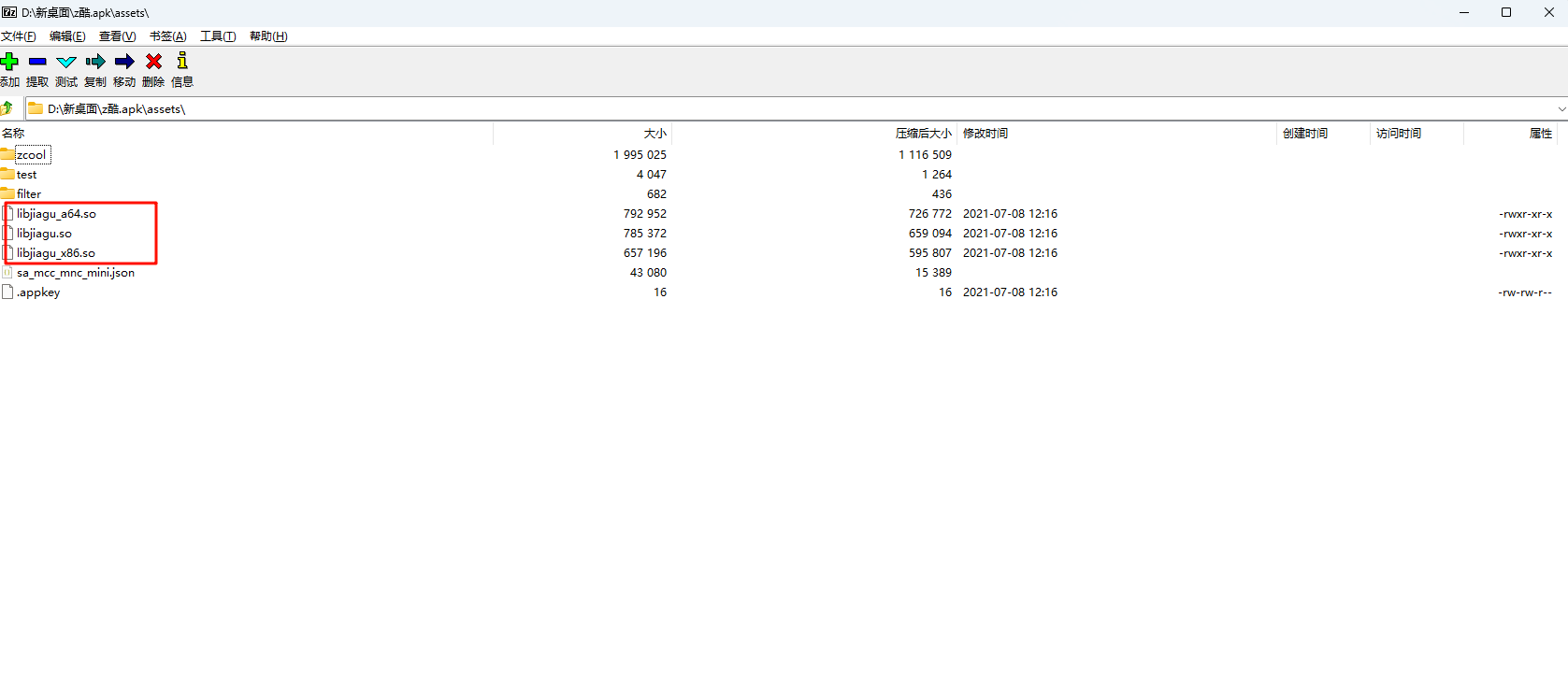

符合360加固的特征，用雷电脱个壳，仍jadx编译一下

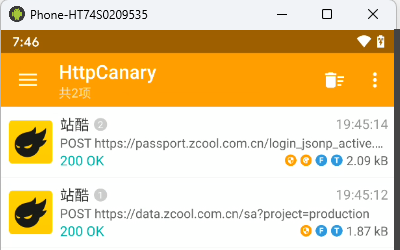

尝试一下抓包，抓到两个数据包

只有第一个有用，下面那个跟登录无关

POST /login_jsonp_active.do HTTP/1.1
common: {"uniqueCode":"dd67d0c0-01e5-492d-8b3b-c35c5fa6ba48","appId":"com.zcool.community","channel":"zcool","mobileType":"android","versionCode":4638}
BaseInfo: {"uniqueCode":"dd67d0c0-01e5-492d-8b3b-c35c5fa6ba48","appId":"com.zcool.community","channel":"zcool","mobileType":"android","versionCode":4638}
Content-Type: application/x-www-form-urlencoded
Content-Length: 624
Host: passport.zcool.com.cn
Connection: Keep-Alive
Accept-Encoding: gzip
Cookie: HWWAFSESID=a3b2973ef5454da521; HWWAFSESTIME=1741081260467
User-Agent: okhttp/3.12.0

app=android&key=dTdlMmtGQjZIQk45NEN3dTIzamdVb2xYMVp5dDZnYmgrMGRlK2xjbkpwZjJpWGczb1FhYWxUVUx1%250AaVJ1d01ZeG5mZUpXZzUvT0M0WQpuYnF1NG0wdjZEd0NaSldPMkZGQ1loRmZ5NG1PM1dTMmhGd3d0%250AbVNhaG9vMVRBbitzQWRrZVBubWZxNGt6ajIyUHJpdEVxUGhHM0tKCmMzWmExU2FXWDJ0VjA0S0NE%250AL3owNmNOUEUrMjRwcExDR0VqSVViU2RyVDU2a0RmS0dqOFhKYmNyYjljM0lqbE9IWm5Rajl5UmM1%250AdnMKTDlFc2xLaVJNRU5rUVJ6RnVaN1k0OVBPTklkeVpsYUJwaG5UTlpkTy9DcmJDcmhvTjRZUUM2%250AcjZiSU4xcTdieHlIOTBxNjYyT0RCNwpNZVhzQVcwbjI3eEtUTHVDWmxhQnBoblROWmRPL0NyYkNy%250AaG9Od0dTRVo1aGxrNlAzMHpYOFFIaTJRZEhjM2JBQy9ESC9iQXBidko1CnUybDluN3FOYkFaT1ZO%250AajNaYnlHSjJrVmdBPT0KP2tleUlkPTE%253D%250A

看那么长的数据先从 hashmap下手，hook hashmap

Java.perform(function() {
    function showStacks() {
        console.log(
            Java.use("android.util.Log")
               .getStackTraceString(
                    Java.use("java.lang.Throwable").$new()
                )
        );
    }


    var HashMap = Java.use('java.util.HashMap');
    HashMap.put.implementation = function(a, b) {

        // 打印username的堆栈信息
        if (a.equals("username")) {
            showStacks();
            console.log("hashMap.put :", a, b);
        }

        console.log("put: ", a, b);
        return this.put(a, b);
    }
}

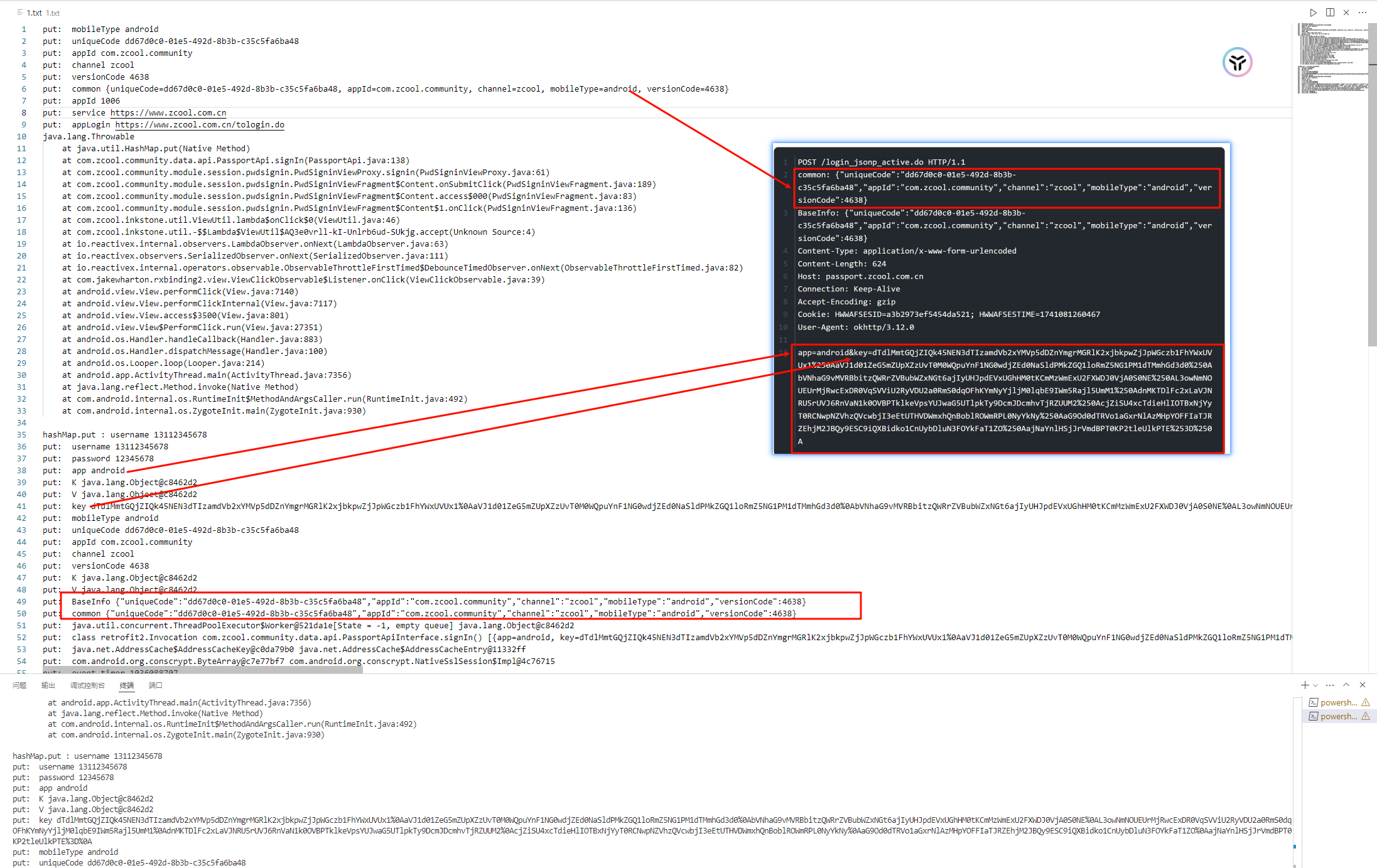

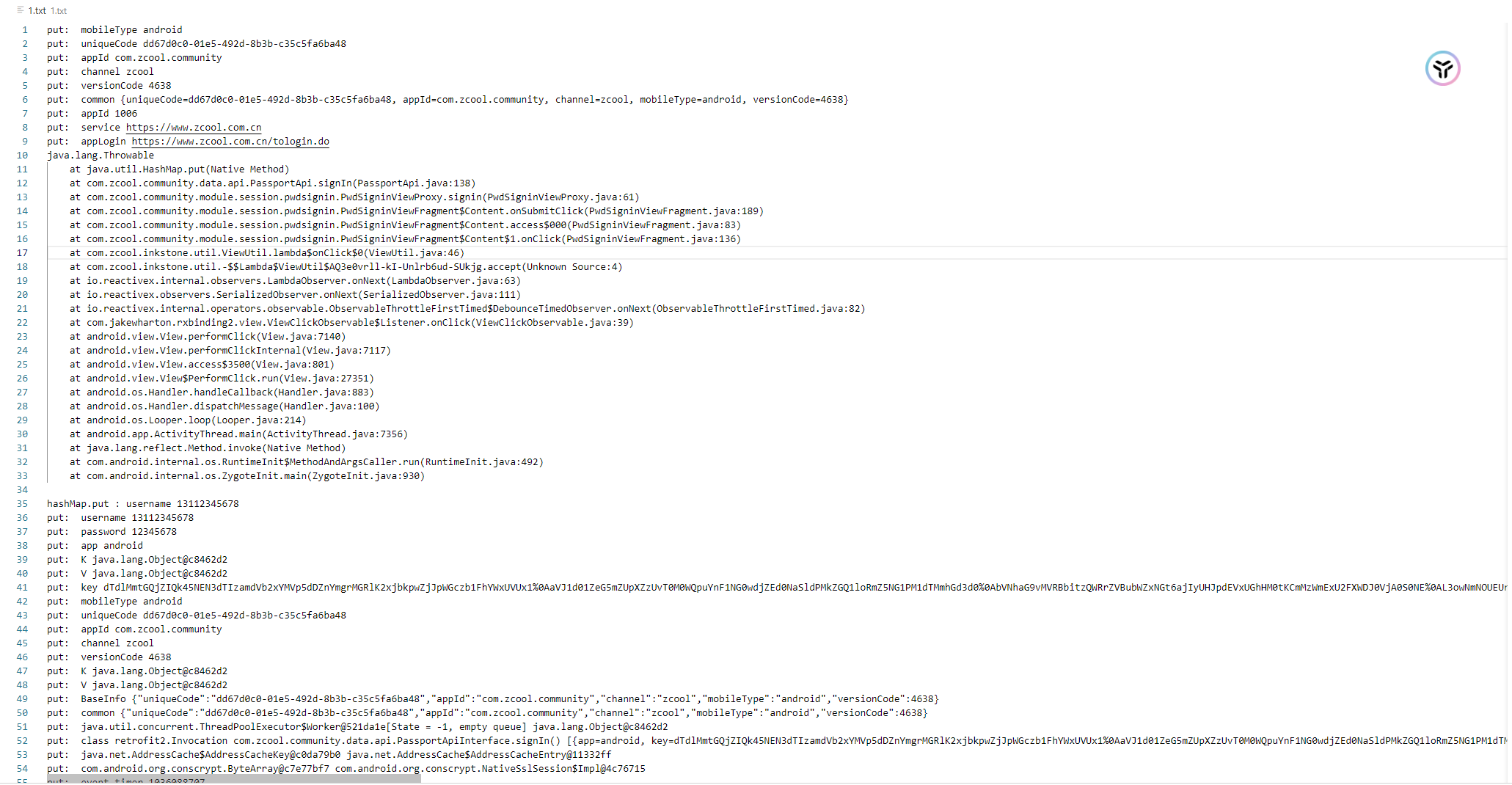

跟抓到的包对比一下，

根据这个堆栈信息去寻找登录加密函数，把没用的东西去掉，看看这几个函数

java.lang.Throwable
	at com.zcool.community.data.api.PassportApi.signIn(PassportApi.java:138)
	at com.zcool.community.module.session.pwdsignin.PwdSigninViewProxy.signin(PwdSigninViewProxy.java:61)
	at com.zcool.community.module.session.pwdsignin.PwdSigninViewFragment$Content.onSubmitClick(PwdSigninViewFragment.java:189)
	at com.zcool.community.module.session.pwdsignin.PwdSigninViewFragment$Content.access$000(PwdSigninViewFragment.java:83)
	at com.zcool.community.module.session.pwdsignin.PwdSigninViewFragment$Content$1.onClick(PwdSigninViewFragment.java:136)
	at com.zcool.inkstone.util.ViewUtil.lambda$onClick$0(ViewUtil.java:46)
	at com.zcool.inkstone.util.-$$Lambda$ViewUtil$AQ3e0vrll-kI-Unlrb6ud-SUkjg.accept(Unknown Source:4)

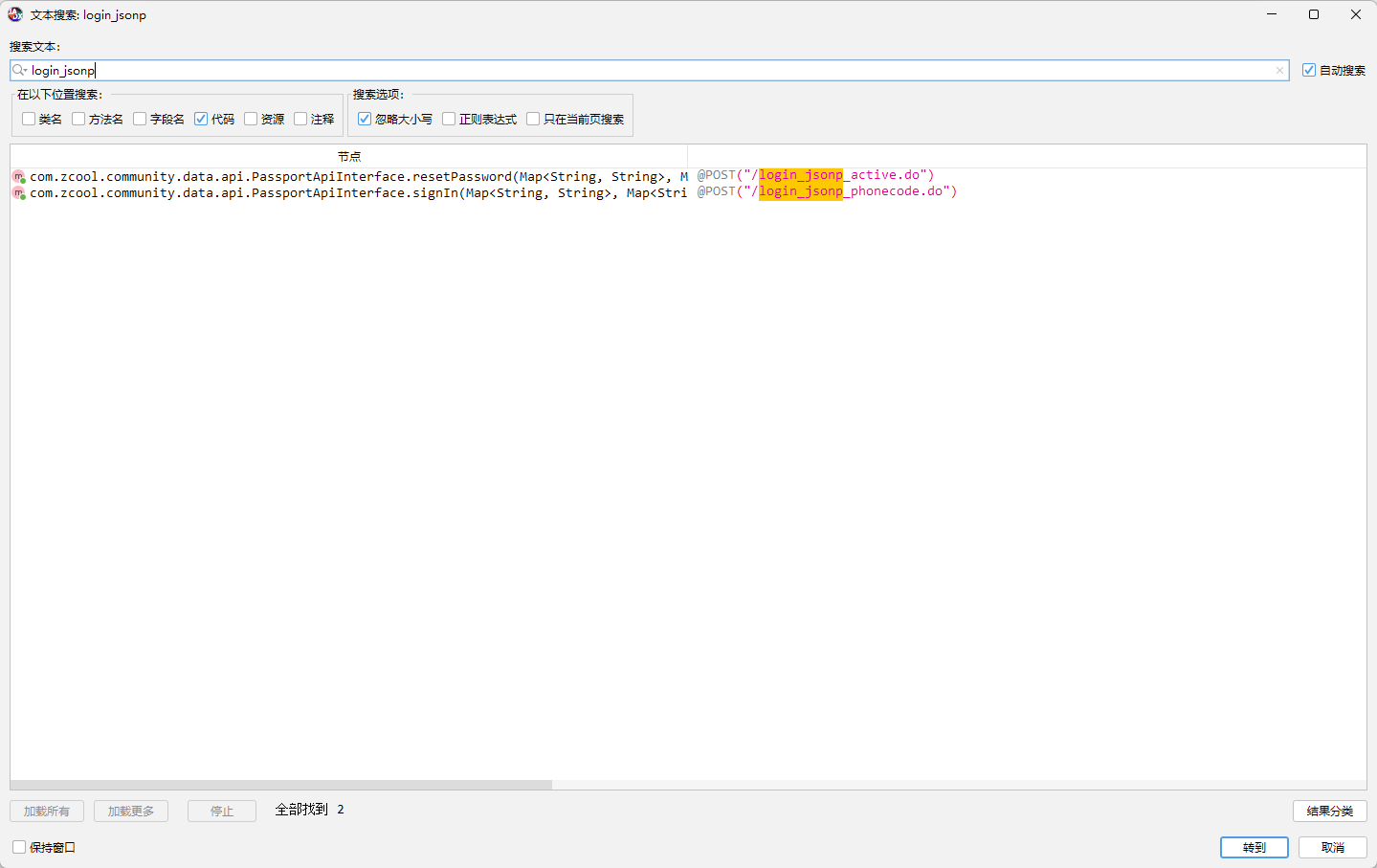

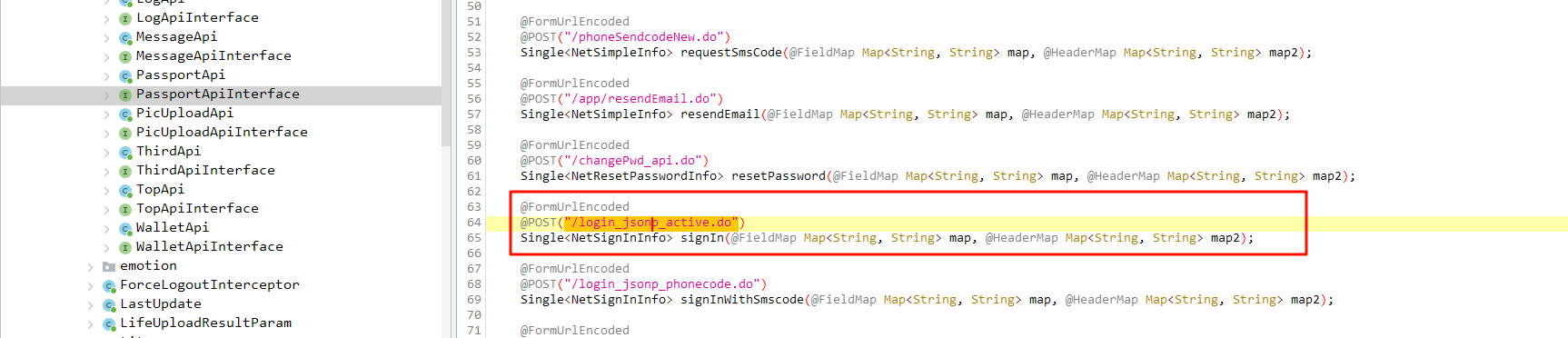

搜一下 login_jsonp 这个地址先

进去是个接口，定义了一个 signIn 方法

再去寻找一下刚刚堆栈的第一个方法，恰好也是 sigin，使用的就是上图接口

稍微分析了一下 str 是用户名 str2 是用户密码，这个 str3 是处理第三方登录的如qq，微信，测试用的账号密码登录，不管这个

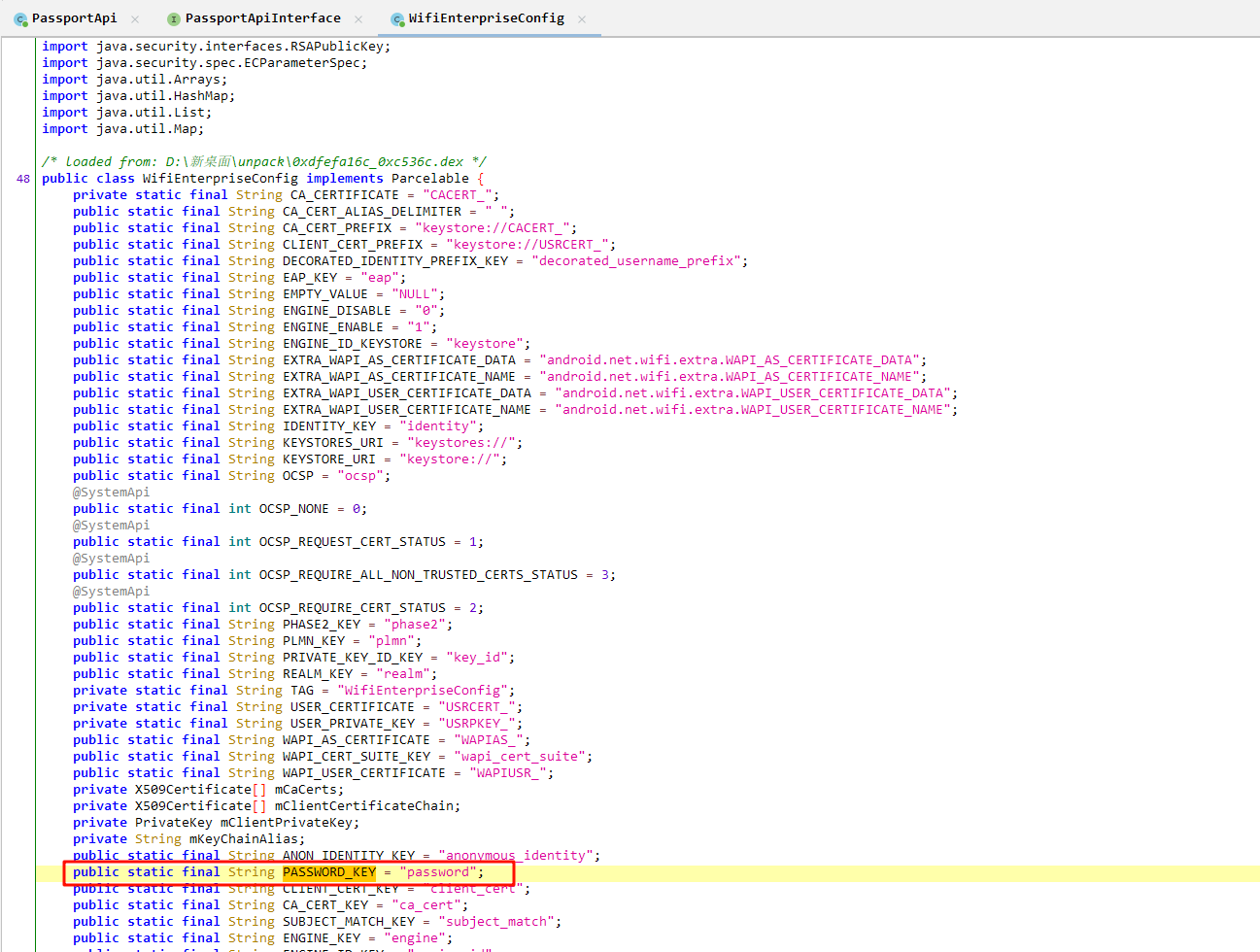

从 str2 跳出去找到 PASSWORD_KEY = “password”，石锤了是密码字段，可能为了防止搜明文搜出来吧

然后就是调用方法 buildAndSetKeyParams 进行数据加密，加密完成时候，发起网络请求

Map<String, String> createBaseParams = createBaseParams();
      buildAndSetKeyParams(createBaseParams, createBaseKeyParams);
      createBaseParams.put(NotificationCompat.CATEGORY_SERVICE, "https://www.zcool.com.cn");
      createBaseParams.put("appLogin", "https://www.zcool.com.cn/tologin.do");
      return this.mApiInterface.onKeyLoginWithToken(createBaseParams, createBaseHeaders()).map(new Function<NetSignInInfo, TrustedResponse<TrustedSignInInfo>>() { // from class: com.zcool.community.data.api.PassportApi.2
          /* JADX WARN: Type inference failed for: r4v1, types: [T, com.zcool.community.data.api.entity.trusted.TrustedSignInInfo] */
          @Override // io.reactivex.functions.Function
          public TrustedResponse<TrustedSignInInfo> apply(@io.reactivex.annotations.NonNull NetSignInInfo netSignInInfo) throws Exception {
              com.zcool.community.data.api.entity.net.NetResponse netResponse = new com.zcool.community.data.api.entity.net.NetResponse();
              netResponse.data = netSignInInfo.toTrustedSignInInfo();
              if (((TrustedSignInInfo) netResponse.data).result) {
                  netResponse.code = 0;
              } else {
                  netResponse.code = -1;
              }
              Log.d("TAG", "response.code:" + netResponse.code);
              netResponse.msg = ((TrustedSignInInfo) netResponse.data).msg;
              return netResponse.toTrustedResponse(new Converter<TrustedSignInInfo, TrustedSignInInfo>() { // from class: com.zcool.community.data.api.PassportApi.2.1
                  @Override // com.zcool.community.lang.Converter
                  public TrustedSignInInfo convert(TrustedSignInInfo trustedSignInInfo) {
                      return trustedSignInInfo;
                  }
              });
          }
      }).map(new Function<TrustedResponse<TrustedSignInInfo>, TrustedResponse<TrustedSignInInfo>>() { // from class: com.zcool.community.data.api.PassportApi.1
          @Override // io.reactivex.functions.Function
          public TrustedResponse<TrustedSignInInfo> apply(@io.reactivex.annotations.NonNull TrustedResponse<TrustedSignInInfo> trustedResponse) throws Exception {
              if (trustedResponse.code == 0 && trustedResponse.data.userId > 0) {
                  if (!TextUtils.isEmpty(trustedResponse.data.SERVER_COOKIE_V1)) {
                      CookiesHelper.addPassportServerCookieV1(trustedResponse.data.SERVER_COOKIE_V1);
                  } else {
                      Timber.e("sign in success, but cookie not found", new Object[0]);
                      new IllegalAccessError("SERVER_COOKIE_V1 not found").printStackTrace();
                  }
              }
              return trustedResponse;
          }
      });

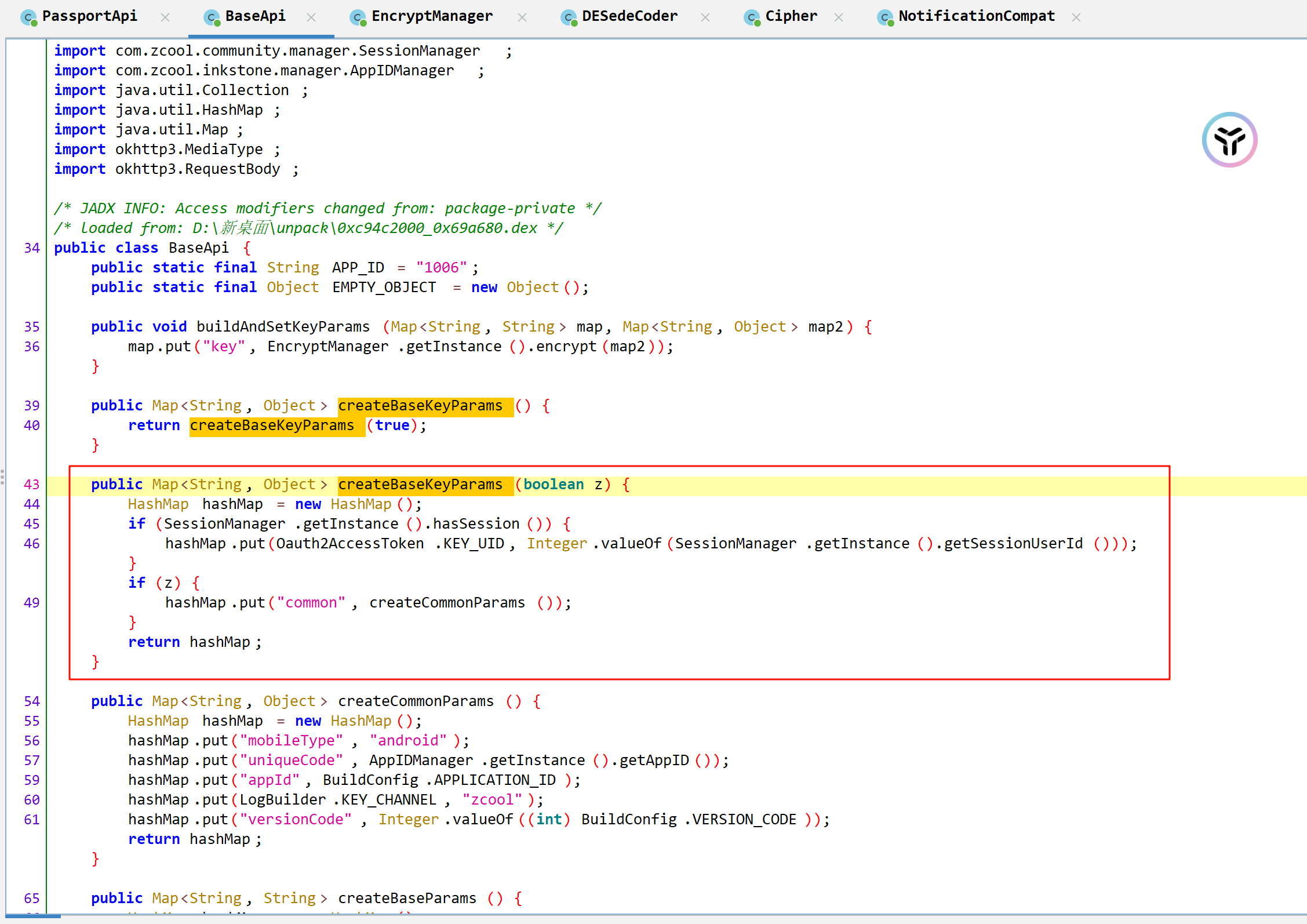

进入buildAndSetKeyParams 函数，这个是继承父类的方法，父类方法中只有一句

1	map.put("key",EncryptManager.getInstance().encrypt(map2));

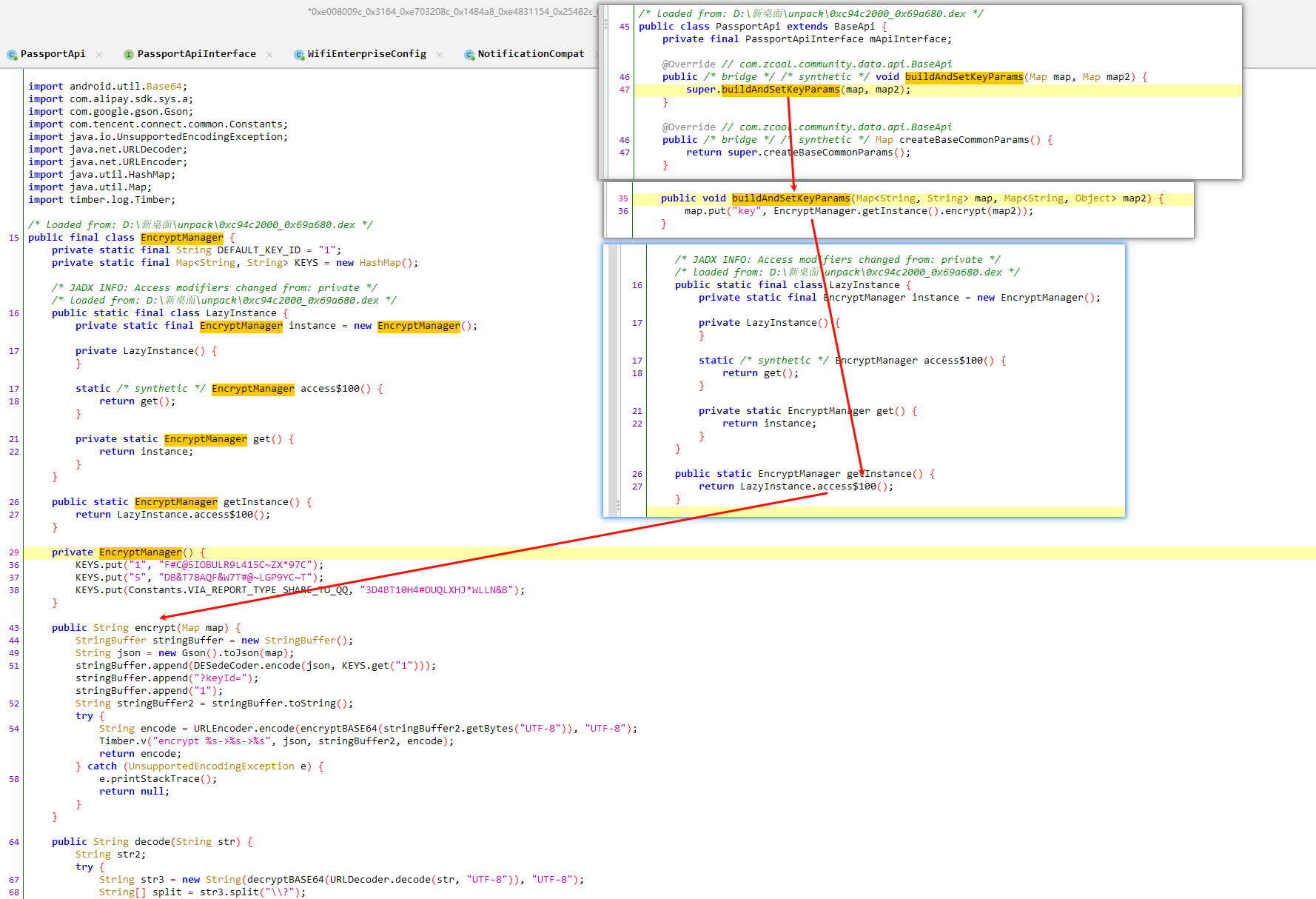

在进入找到 EncryptManager.getInstance().encrypt(map2) ，根据最下面的图 EncryptManager.getInstance() 等效于 LazyInstance.access$100(); 等效于 LazyInstance.get() 返回结果为

private static final EncryptManager instance = new EncryptManager() 这个名为 instance 的 EncryptManager 类

绕了一圈，创建了一个EncryptManager 类调用这个类的 encrypt 方法，传入map2，map是空的，map2包含用户的各种信息。

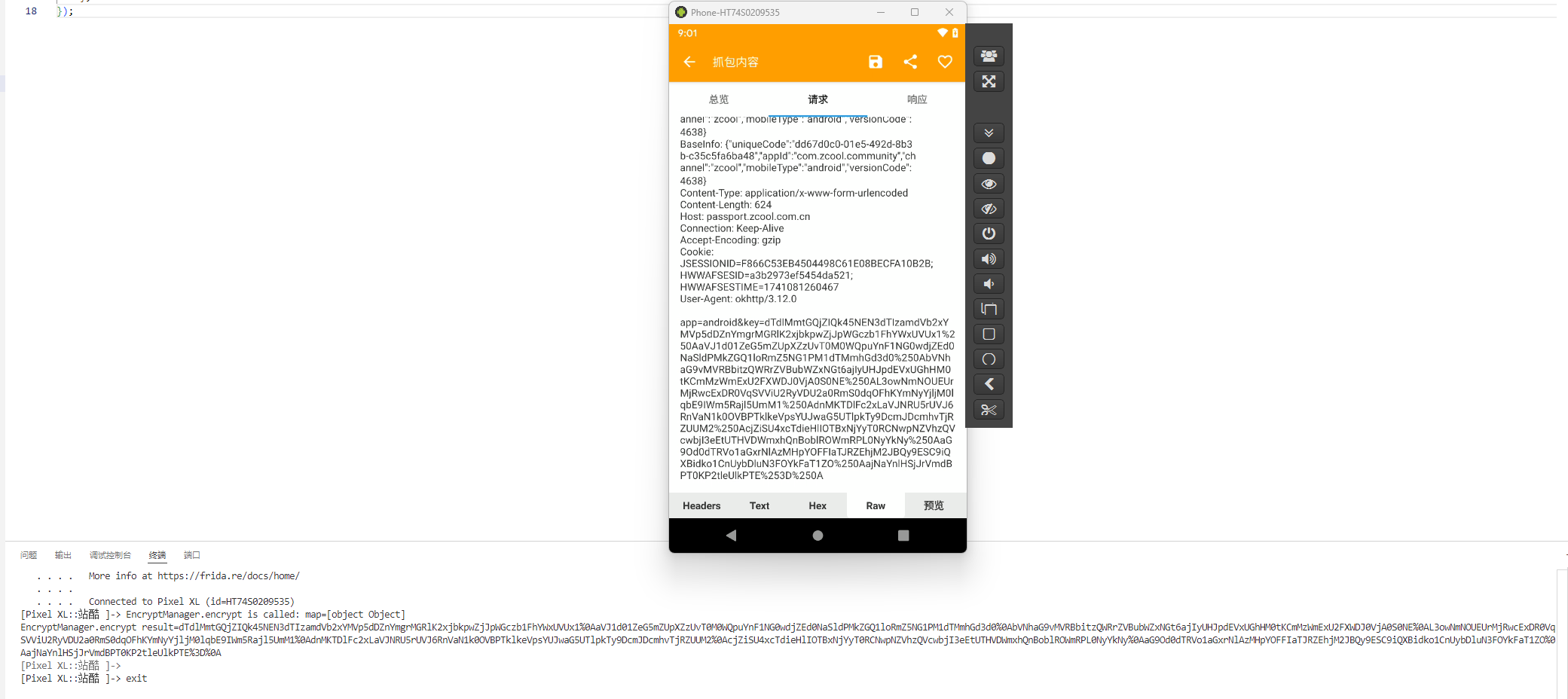

hook一下这个方法，查看出入值，返回值和抓包的值是否有一致的部分

Java.perform(function () {
    function showStacks() {
        console.log(
            Java.use("android.util.Log")
                .getStackTraceString(
                    Java.use("java.lang.Throwable").$new()
                )
        );
    }

    var EncryptManager = Java.use("com.zcool.community.data.api.encrypt.EncryptManager");
    EncryptManager["encrypt"].implementation = function (map) {
        console.log(`EncryptManager.encrypt is called: map=${map}`);
        let result = this["encrypt"](map);
        console.log(`EncryptManager.encrypt result=${result}`);
        return result;
    };
});

处理一下着两份数据，不能说大差不差，只能说完全一样，只有间隔符不一样返回的数值的间隔符是 %0A ，抓包的是 %250A，而发包是要使用url编码，%25在url编码中就是%

这些东西将密文分成了 76 字符一组。

result=
dTdlMmtGQjZIQk45NEN3dTIzamdVb2xYMVp5dDZnYmgrMGRlK2xjbkpwZjJpWGczb1FhYWxUVUx1
%0A
aVJ1d01ZeG5mZUpXZzUvT0M0WQpuYnF1NG0wdjZEd0NaSldPMkZGQ1loRmZ5NG1PM1dTMmhGd3d0
%0A
bVNhaG9vMVRBbitzQWRrZVBubWZxNGt6ajIyUHJpdEVxUGhHM0tKCmMzWmExU2FXWDJ0VjA0S0NE
%0A
L3owNmNOUEUrMjRwcExDR0VqSVViU2RyVDU2a0RmS0dqOFhKYmNyYjljM0lqbE9IWm5Rajl5UmM1
%0A
dnMKTDlFc2xLaVJNRU5rUVJ6RnVaN1k0OVBPTklkeVpsYUJwaG5UTlpkTy9DcmJDcmhvTjRZUUM2
%0A
cjZiSU4xcTdieHlIOTBxNjYyT0RCNwpNZVhzQVcwbjI3eEtUTHVDWmxhQnBoblROWmRPL0NyYkNy
%0A
aG9Od0dTRVo1aGxrNlAzMHpYOFFIaTJRZEhjM2JBQy9ESC9iQXBidko1CnUybDluN3FOYkFaT1ZO
%0A
ajNaYnlHSjJrVmdBPT0KP2tleUlkPTE
%3D
%0A

app=android&key=
dTdlMmtGQjZIQk45NEN3dTIzamdVb2xYMVp5dDZnYmgrMGRlK2xjbkpwZjJpWGczb1FhYWxUVUx1
%250A
aVJ1d01ZeG5mZUpXZzUvT0M0WQpuYnF1NG0wdjZEd0NaSldPMkZGQ1loRmZ5NG1PM1dTMmhGd3d0
%250A
bVNhaG9vMVRBbitzQWRrZVBubWZxNGt6ajIyUHJpdEVxUGhHM0tKCmMzWmExU2FXWDJ0VjA0S0NE
%250A
L3owNmNOUEUrMjRwcExDR0VqSVViU2RyVDU2a0RmS0dqOFhKYmNyYjljM0lqbE9IWm5Rajl5UmM1
%250A
dnMKTDlFc2xLaVJNRU5rUVJ6RnVaN1k0OVBPTklkeVpsYUJwaG5UTlpkTy9DcmJDcmhvTjRZUUM2
%250A
cjZiSU4xcTdieHlIOTBxNjYyT0RCNwpNZVhzQVcwbjI3eEtUTHVDWmxhQnBoblROWmRPL0NyYkNy
%250A
aG9Od0dTRVo1aGxrNlAzMHpYOFFIaTJRZEhjM2JBQy9ESC9iQXBidko1CnUybDluN3FOYkFaT1ZO
%250A
ajNaYnlHSjJrVmdBPT0KP2tleUlkPTE
%253D
%250A

encrypt就是一个关键方法了

private EncryptManager() {
    KEYS.put("1", "F#C@5IOBULR9L415C~ZX*97C");
    KEYS.put("5", "DB&T78AQF&W7T#@~LGP9YC~T");
    KEYS.put(Constants.VIA_REPORT_TYPE_SHARE_TO_QQ, "3D4BT10H4#DUQLXHJ*WLLN&B");
}

public String encrypt(Map map) {
    StringBuffer stringBuffer = new StringBuffer();
    // json序列化，将map数据转换成json字符串
    String json = new Gson().toJson(map);
    // 使用DESede加密json
    // DESede又叫3DES，密钥24位，encrypt函数上方就是明文的密钥
    stringBuffer.append(DESedeCoder.encode(json, KEYS.get("1")));
    // 拼接keyID参数
    stringBuffer.append("?keyId=");
    stringBuffer.append("1");
    String stringBuffer2 = stringBuffer.toString();
    try {
        // URL编码
        // encryptBASE64(stringBuffer2.getBytes("UTF-8"))，将加密结果从byte类型转换成可传输的ASCII字符串
        String encode = URLEncoder.encode(encryptBASE64(stringBuffer2.getBytes("UTF-8")), "UTF-8");
        Timber.v("encrypt %s->%s->%s", json, stringBuffer2, encode);
        return encode;
    } catch (UnsupportedEncodingException e) {
        e.printStackTrace();
        return null;
    }
}

既然进行了url编码，那打印出来的 %0A 就需要还原成换行符了，%3D 解码成 =

经过3DES加密之后的结果就是

dTdlMmtGQjZIQk45NEN3dTIzamdVb2xYMVp5dDZnYmgrMGRlK2xjbkpwZjJpWGczb1FhYWxUVUx1
aVJ1d01ZeG5mZUpXZzUvT0M0WQpuYnF1NG0wdjZEd0NaSldPMkZGQ1loRmZ5NG1PM1dTMmhGd3d0
bVNhaG9vMVRBbitzQWRrZVBubWZxNGt6ajIyUHJpdEVxUGhHM0tKCmMzWmExU2FXWDJ0VjA0S0NE
L3owNmNOUEUrMjRwcExDR0VqSVViU2RyVDU2a0RmS0dqOFhKYmNyYjljM0lqbE9IWm5Rajl5UmM1
dnMKTDlFc2xLaVJNRU5rUVJ6RnVaN1k0OVBPTklkeVpsYUJwaG5UTlpkTy9DcmJDcmhvTjRZUUM2
cjZiSU4xcTdieHlIOTBxNjYyT0RCNwpNZVhzQVcwbjI3eEtUTHVDWmxhQnBoblROWmRPL0NyYkNy
aG9Od0dTRVo1aGxrNlAzMHpYOFFIaTJRZEhjM2JBQy9ESC9iQXBidko1CnUybDluN3FOYkFaT1ZO
ajNaYnlHSjJrVmdBPT0KP2tleUlkPTE=

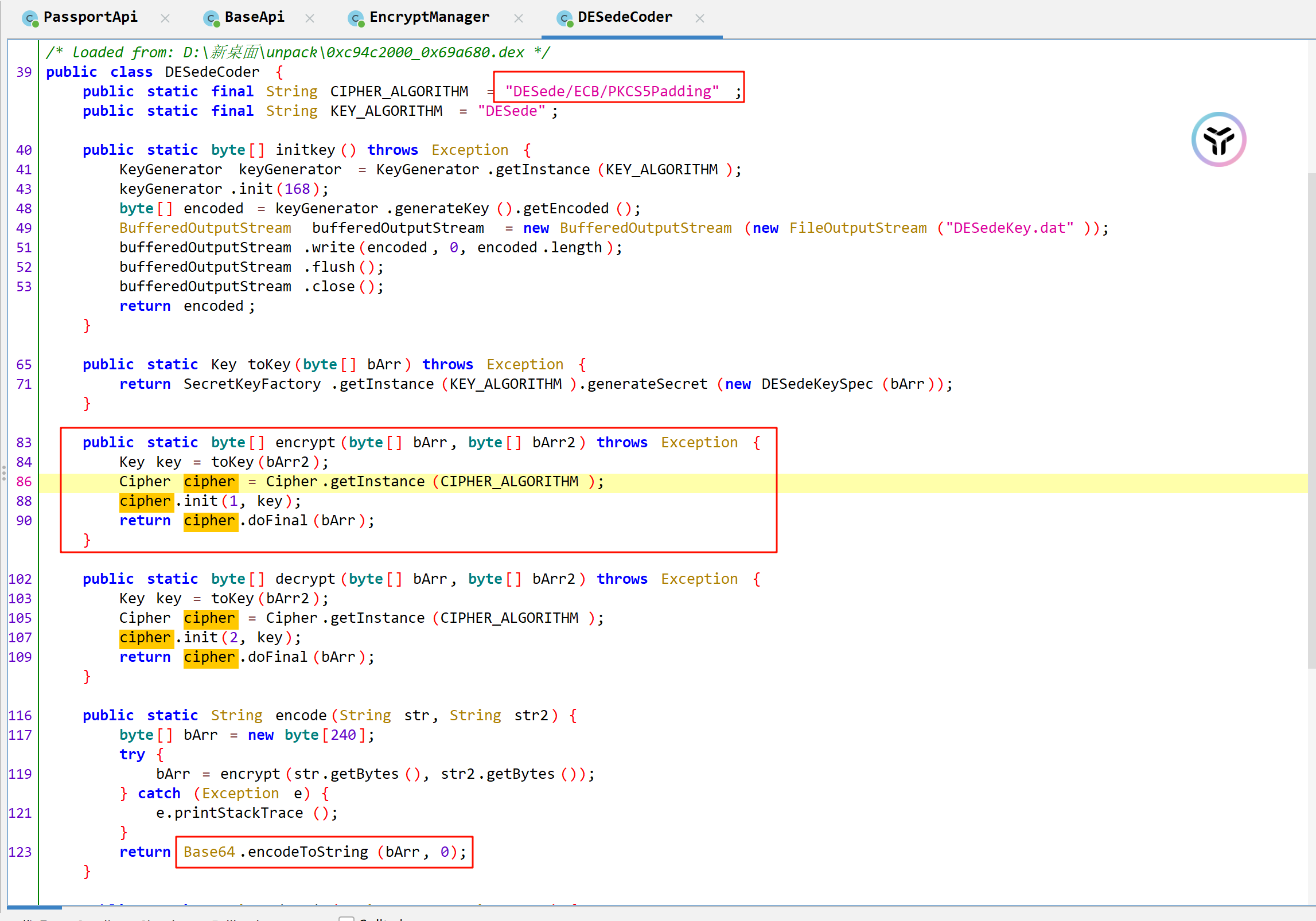

ECB的填充模式，没有iv值，先将传入的字符串转换成byte的形式，再将传入的keyID=1作为密钥，看起来这个是一个标准的DESede/ECB加密

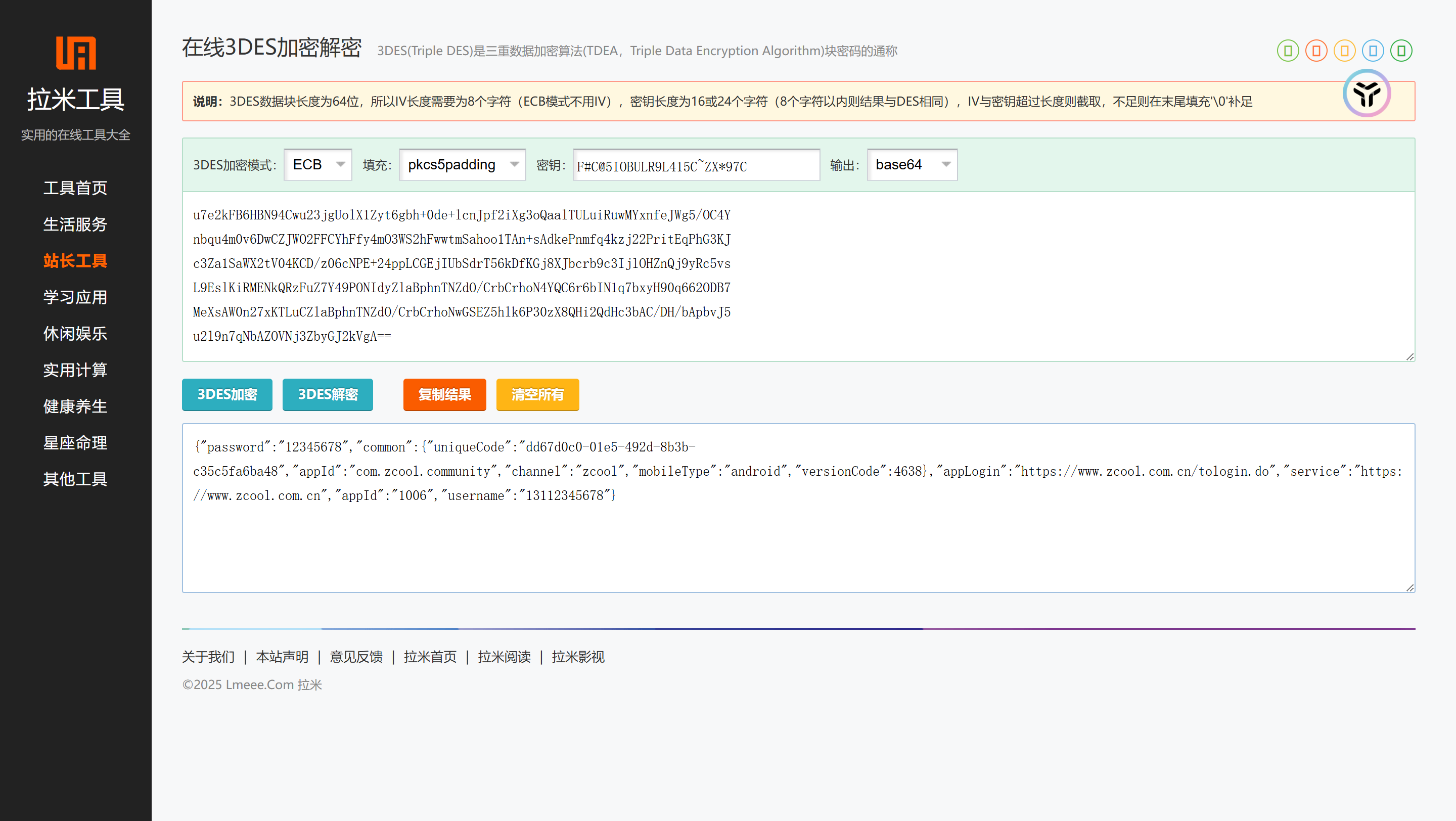

将原数据base64解码，去除掉拼接的 ?keyId=1，得到密文，尝试DESede解码

u7e2kFB6HBN94Cwu23jgUolX1Zyt6gbh+0de+lcnJpf2iXg3oQaalTULuiRuwMYxnfeJWg5/OC4Y
nbqu4m0v6DwCZJWO2FFCYhFfy4mO3WS2hFwwtmSahoo1TAn+sAdkePnmfq4kzj22PritEqPhG3KJ
c3Za1SaWX2tV04KCD/z06cNPE+24ppLCGEjIUbSdrT56kDfKGj8XJbcrb9c3IjlOHZnQj9yRc5vs
L9EslKiRMENkQRzFuZ7Y49PONIdyZlaBphnTNZdO/CrbCrhoN4YQC6r6bIN1q7bxyH90q662ODB7
MeXsAW0n27xKTLuCZlaBphnTNZdO/CrbCrhoNwGSEZ5hlk6P30zX8QHi2QdHc3bAC/DH/bApbvJ5
u2l9n7qNbAZOVNj3ZbyGJ2kVgA==
?keyId=1

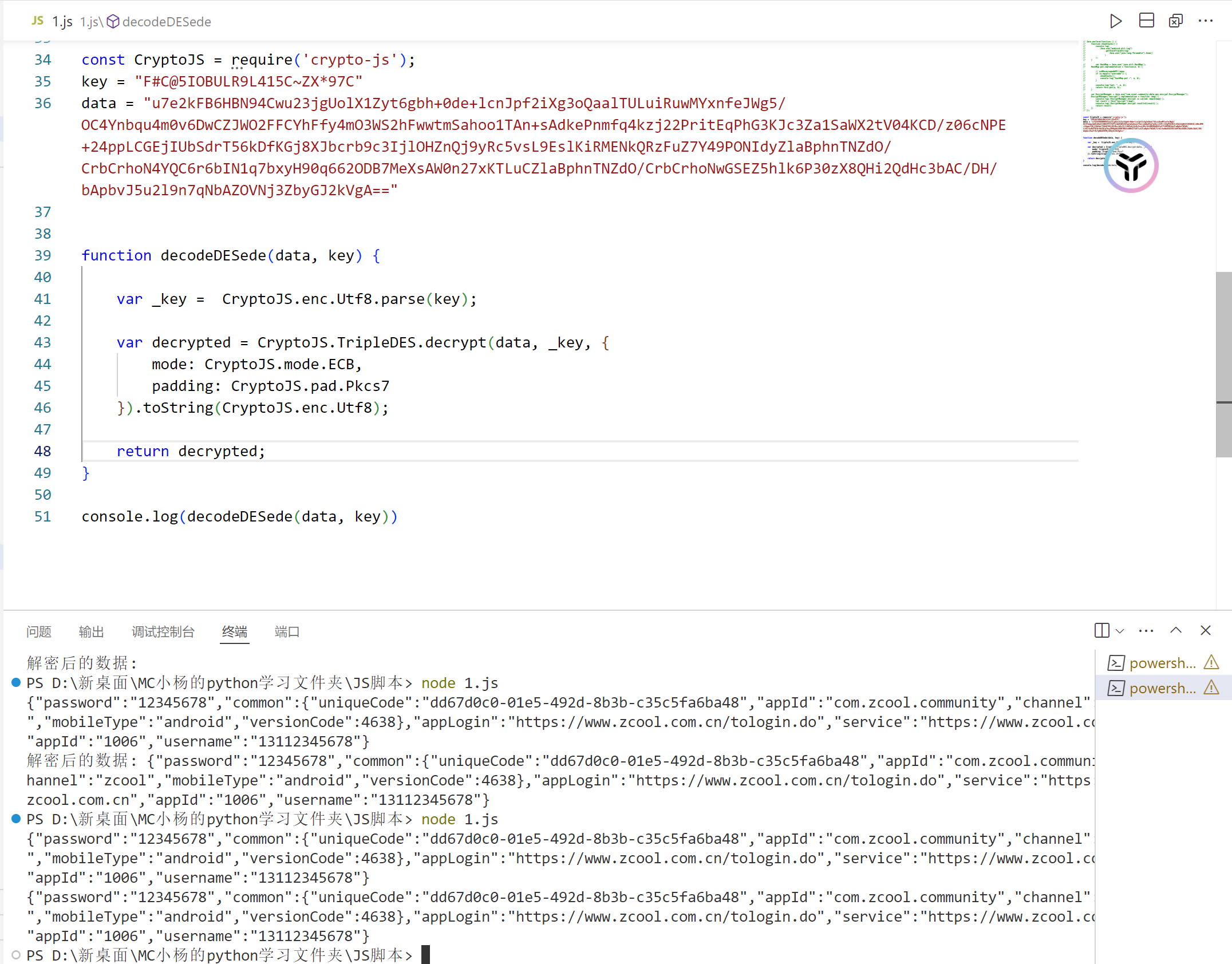

解密脚本

const CryptoJS = require('crypto-js');
key = "F#C@5IOBULR9L415C~ZX*97C"
data = "u7e2kFB6HBN94Cwu23jgUolX1Zyt6gbh+0de+lcnJpf2iXg3oQaalTULuiRuwMYxnfeJWg5/OC4Ynbqu4m0v6DwCZJWO2FFCYhFfy4mO3WS2hFwwtmSahoo1TAn+sAdkePnmfq4kzj22PritEqPhG3KJc3Za1SaWX2tV04KCD/z06cNPE+24ppLCGEjIUbSdrT56kDfKGj8XJbcrb9c3IjlOHZnQj9yRc5vsL9EslKiRMENkQRzFuZ7Y49PONIdyZlaBphnTNZdO/CrbCrhoN4YQC6r6bIN1q7bxyH90q662ODB7MeXsAW0n27xKTLuCZlaBphnTNZdO/CrbCrhoNwGSEZ5hlk6P30zX8QHi2QdHc3bAC/DH/bApbvJ5u2l9n7qNbAZOVNj3ZbyGJ2kVgA=="


function decodeDESede(data, key) {

    var _key =  CryptoJS.enc.Utf8.parse(key);
    var decrypted = CryptoJS.TripleDES.decrypt(data, _key, {
        mode: CryptoJS.mode.ECB,
        padding: CryptoJS.pad.Pkcs7
    }).toString(CryptoJS.enc.Utf8);

    return decrypted;
}

console.log(decodeDESede(data, key))

解密后的数据

解密后的数据:
{"password":"12345678",
"common":{"uniqueCode":"dd67d0c0-01e5-492d-8b3b-c35c5fa6ba48","appId":"com.zcool.community","channel":"zcool","mobileType":"android","versionCode":4638},
"appLogin":"https://www.zcool.com.cn/tologin.do",
"service":"https://www.zcool.com.cn",
"appId":"1006",
"username":"13112345678"}

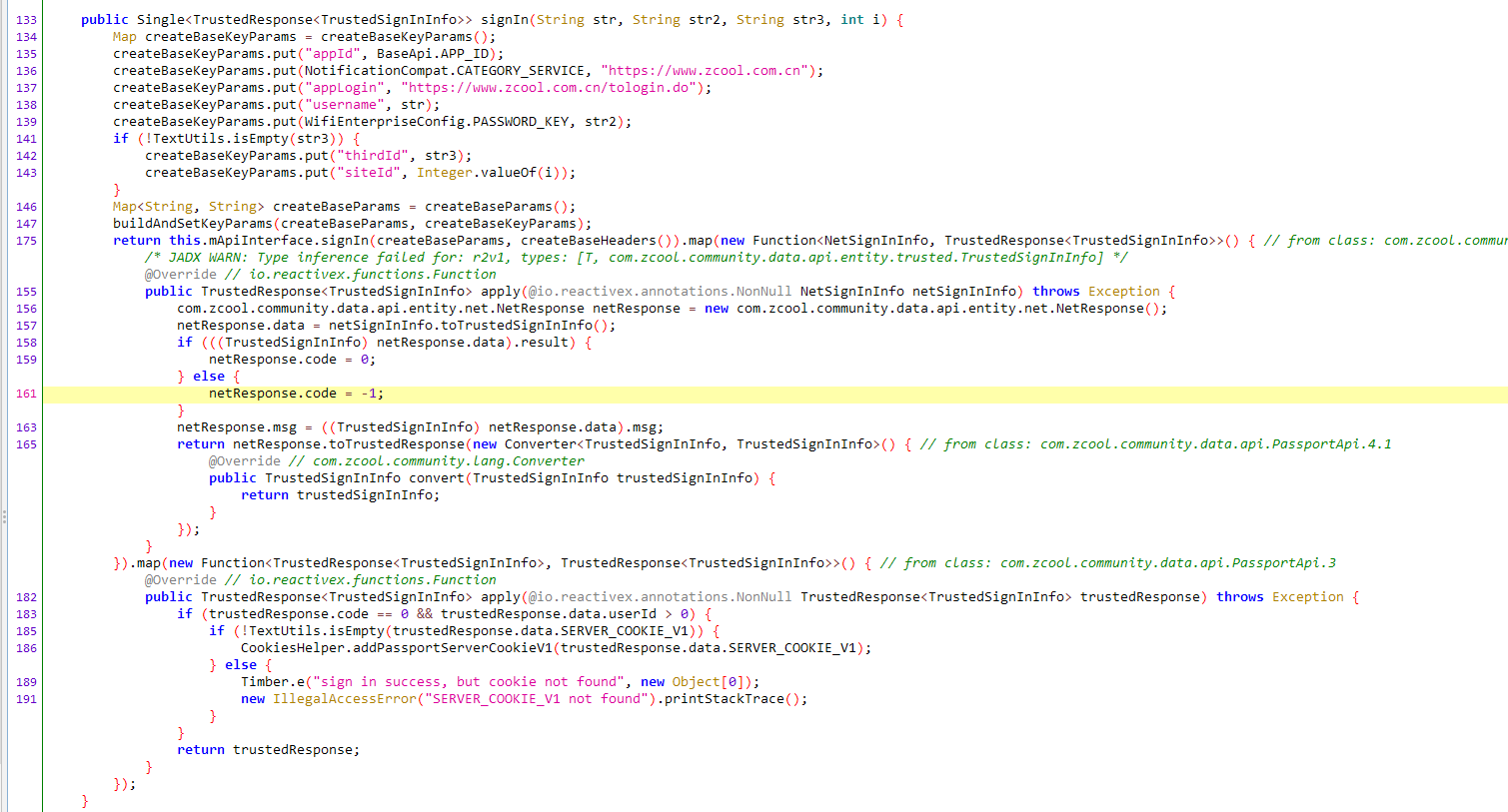

再回头看put数据的方法，这里put了五项，但是map数值不是new的，说明 common字段以及提前构建好了

public Single<TrustedResponse<TrustedSignInInfo>> signIn(String str, String str2, String str3, int i) {
        Map createBaseKeyParams = createBaseKeyParams();
        createBaseKeyParams.put("appId", BaseApi.APP_ID);
        createBaseKeyParams.put(NotificationCompat.CATEGORY_SERVICE, "https://www.zcool.com.cn");
        createBaseKeyParams.put("appLogin", "https://www.zcool.com.cn/tologin.do");
        createBaseKeyParams.put("username", str);
        createBaseKeyParams.put(WifiEnterpriseConfig.PASSWORD_KEY, str2);
        if (!TextUtils.isEmpty(str3)) {
            createBaseKeyParams.put("thirdId", str3);
            createBaseKeyParams.put("siteId", Integer.valueOf(i));
        }
        Map<String, String> createBaseParams = createBaseParams();
        buildAndSetKeyParams(createBaseParams, createBaseKeyParams);
        return this.mApiInterface.signIn(createBaseParams, createBaseHeaders()).map(new Function<NetSignInInfo, TrustedResponse<TrustedSignInInfo>>() { // from class: com.zcool.community.data.api.PassportApi.4
            /* JADX WARN: Type inference failed for: r2v1, types: [T, com.zcool.community.data.api.entity.trusted.TrustedSignInInfo] */
            @Override // io.reactivex.functions.Function
            public TrustedResponse<TrustedSignInInfo> apply(@io.reactivex.annotations.NonNull NetSignInInfo netSignInInfo) throws Exception {
                com.zcool.community.data.api.entity.net.NetResponse netResponse = new com.zcool.community.data.api.entity.net.NetResponse();
                netResponse.data = netSignInInfo.toTrustedSignInInfo();
                if (((TrustedSignInInfo) netResponse.data).result) {
                    netResponse.code = 0;
                } else {
                    netResponse.code = -1;
                }
                netResponse.msg = ((TrustedSignInInfo) netResponse.data).msg;
                return netResponse.toTrustedResponse(new Converter<TrustedSignInInfo, TrustedSignInInfo>() { // from class: com.zcool.community.data.api.PassportApi.4.1
                    @Override // com.zcool.community.lang.Converter
                    public TrustedSignInInfo convert(TrustedSignInInfo trustedSignInInfo) {
                        return trustedSignInInfo;
                    }
                });
            }
        }).map(new Function<TrustedResponse<TrustedSignInInfo>, TrustedResponse<TrustedSignInInfo>>() { // from class: com.zcool.community.data.api.PassportApi.3
            @Override // io.reactivex.functions.Function
            public TrustedResponse<TrustedSignInInfo> apply(@io.reactivex.annotations.NonNull TrustedResponse<TrustedSignInInfo> trustedResponse) throws Exception {
                if (trustedResponse.code == 0 && trustedResponse.data.userId > 0) {
                    if (!TextUtils.isEmpty(trustedResponse.data.SERVER_COOKIE_V1)) {
                        CookiesHelper.addPassportServerCookieV1(trustedResponse.data.SERVER_COOKIE_V1);
                    } else {
                        Timber.e("sign in success, but cookie not found", new Object[0]);
                        new IllegalAccessError("SERVER_COOKIE_V1 not found").printStackTrace();
                    }
                }
                return trustedResponse;
            }
        });
    }

看common的构建，除了uniqueCode都是固定的，uniqueCode跟自己手机有关，这个字段不用管了

这样一来数据包传输的东西只有password和username是不固定的，其他的基本固定，可以直接拿数值构建，再来看请求头的构造

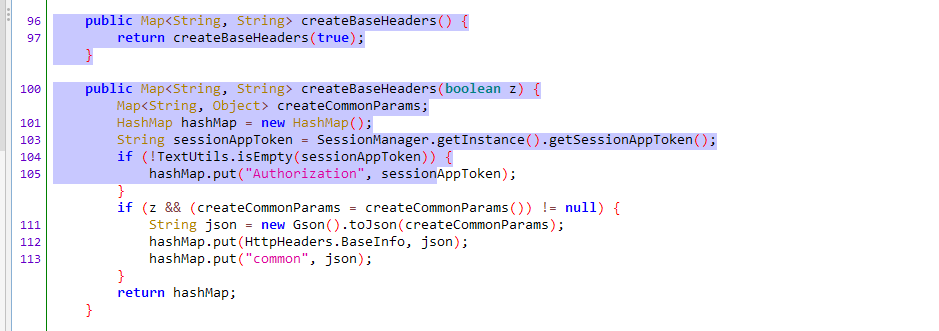

return this.mApiInterface.signIn(createBaseParams, createBaseHeaders()).map(new Function<NetSignInInfo, TrustedResponse<TrustedSignInInfo>>() {

}

// createBaseParams 是加密后的参数，createBaseHeaders()函数用于构造请求头

先获取令牌，由于是首次登录不存在令牌，在请求头添加 common 和 BaseInfo，内容相同

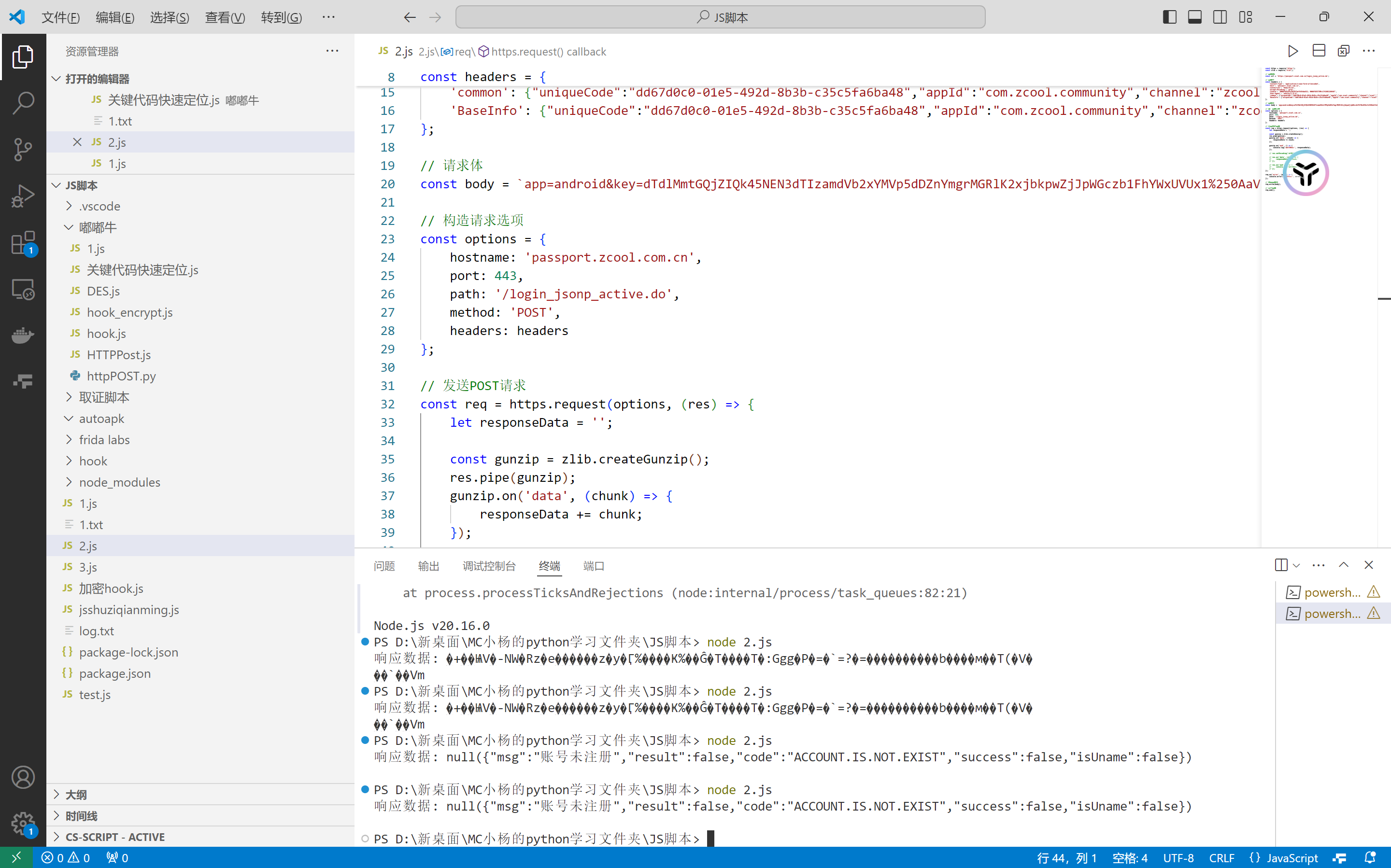

请求头的其他部分都是 OkHttp 默认添加的，也不存在时间戳等时间，开始简单仿造一个请求

请求返回的数据经过gzip压缩，之前的请求头上以及表示可以接收gzip压缩了，可以写个判断，这里直接使用了，没判断

const https = require('https');
const zlib = require('zlib');

// 请求URL
const url = 'https://passport.zcool.com.cn/login_jsonp_active.do';

// 请求头
const headers = {
    'Content-Type': 'application/x-www-form-urlencoded',
    'Host': 'passport.zcool.com.cn',
    'Connection': 'Keep-Alive',
    'Accept-Encoding': 'gzip',
    'Cookie': 'HWWAFSESID=a3b2973ef5454da521; HWWAFSESTIME=1741081260467',
    'User-Agent': 'okhttp/3.12.0',
    'common': {"uniqueCode":"dd67d0c0-01e5-492d-8b3b-c35c5fa6ba48","appId":"com.zcool.community","channel":"zcool","mobileType":"android","versionCode":4638},
    'BaseInfo': {"uniqueCode":"dd67d0c0-01e5-492d-8b3b-c35c5fa6ba48","appId":"com.zcool.community","channel":"zcool","mobileType":"android","versionCode":4638}
};

// 请求体
const body = `app=android&key=dTdlMmtGQjZIQk45NEN3dTIzamdVb2xYMVp5dDZnYmgrMGRlK2xjbkpwZjJpWGczb1FhYWxUVUx1%250AaVJ1d01ZeG5mZUpXZzUvT0M0WQpuYnF1NG0wdjZEd0NaSldPMkZGQ1loRmZ5NG1PM1dTMmhGd3d0%250AbVNhaG9vMVRBbitzQWRrZVBubWZxNGt6ajIyUHJpdEVxUGhHM0tKCmMzWmExU2FXWDJ0VjA0S0NE%250AL3owNmNOUEUrMjRwcExDR0VqSVViU2RyVDU2a0RmS0dqOFhKYmNyYjljM0lqbE9IWm5Rajl5UmM1%250AdnMKTDlFc2xLaVJNRU5rUVJ6RnVaN1k0OVBPTklkeVpsYUJwaG5UTlpkTy9DcmJDcmhvTjRZUUM2%250AcjZiSU4xcTdieHlIOTBxNjYyT0RCNwpNZVhzQVcwbjI3eEtUTHVDWmxhQnBoblROWmRPL0NyYkNy%250AaG9Od0dTRVo1aGxrNlAzMHpYOFFIaTJRZEhjM2JBQy9ESC9iQXBidko1CnUybDluN3FOYkFaT1ZO%250AajNaYnlHSjJrVmdBPT0KP2tleUlkPTE%253D%250A`;

// 构造请求选项
const options = {
    hostname: 'passport.zcool.com.cn',
    port: 443,
    path: '/login_jsonp_active.do',
    method: 'POST',
    headers: headers
};

// 发送POST请求
const req = https.request(options, (res) => {
    let responseData = '';

    const gunzip = zlib.createGunzip();
    res.pipe(gunzip);
    gunzip.on('data', (chunk) => {
        responseData += chunk;
    });

    gunzip.on('end', () => {
        console.log('响应数据:', responseData);
    });

    // res.setEncoding('utf8');

    // res.on('data', (chunk) => {
    //     responseData += chunk;
    // });

    // res.on('end', () => {
    //     console.log('响应数据:', responseData);
    // });
});

req.on('error', (error) => {
    console.error('请求错误:', error);
});

req.write(body);
req.end();

和手机上结果相同

返回的数据是没有进行加密的，明文传输回来，就不需要写DESede解密方法了，写一个加密方法，完善这个请求

var http = require('https');
const zlib = require('zlib');
const CryptoJS = require('crypto-js');

let username = "13112345678"
let password = "12345678"

let date = `{"password": ${password},"common":{"uniqueCode":"dd67d0c0-01e5-492d-8b3b-c35c5fa6ba48","appId":"com.zcool.community","channel":"zcool","mobileType":"android","versionCode":4638},"appLogin":"https://www.zcool.com.cn/tologin.do","service":"https://www.zcool.com.cn","appId":"1006","username": ${username}}`

// DESede解密
function decodeDESede(data, key) {
    var _key =  CryptoJS.enc.Utf8.parse(key);

    var decrypted = CryptoJS.TripleDES.decrypt(data, _key, {
        mode: CryptoJS.mode.ECB,
        padding: CryptoJS.pad.Pkcs7
    }).toString(CryptoJS.enc.Utf8);

    return decrypted;
}

// DESede加密
function encodeDESede(data, key) {
    var _key =  CryptoJS.enc.Utf8.parse(key);

    var decrypted = CryptoJS.TripleDES.encrypt(data, _key, {
        mode: CryptoJS.mode.ECB,
        padding: CryptoJS.pad.Pkcs7
    }).toString();

    return decrypted;
}

// 按照安卓代码处理body，这里的加密结果没用换行符，测试了一下也没啥问题，理论上没用换行符也不要url编码了。
function handleBody(body) {
    var result = body + '\n' + '?keyId=1';
    result = encodeURIComponent(btoa(result));
    return `app=android&key=${result}`;
}

console.log(handleBody(encodeDESede(date, key)))


// 构造请求
function post(result) {
    const headers = {
        'Content-Type': 'application/x-www-form-urlencoded',
        'Host': 'passport.zcool.com.cn',
        'Connection': 'Keep-Alive',
        'Accept-Encoding': 'gzip',
        'User-Agent': 'okhttp/3.12.1',
        'common': {"uniqueCode":"dd67d0c0-01e5-492d-8b3b-c35c5fa6ba48","appId":"com.zcool.community","channel":"zcool","mobileType":"android","versionCode":4638},
        'BaseInfo': {"uniqueCode":"dd67d0c0-01e5-492d-8b3b-c35c5fa6ba48","appId":"com.zcool.community","channel":"zcool","mobileType":"android","versionCode":4638}
    }

    var options = {
        hostname: 'passport.zcool.com.cn',
        port: 443,
        path: '/login_jsonp_active.do',
        method: 'POST',
        headers: headers
    }

    var req = http.request(options, function (res) {
        // console.log('STATUS:'+ res.statusCode);
        // console.log('HEADERS:'+ JSON.stringify(res.headers));

        var body = '';

        const gunzip = zlib.createGunzip();
        res.pipe(gunzip);

        gunzip.on('data', function (chunk) {
            body += chunk;
        });

        gunzip.on('end', function () {
            console.log('响应数据：', body)
        });
    });

    req.on('error', function (e) {
        console.log('problem with request:'+ e.message);
    })

    req.write(result);
    req.end();
}

post(handleBody(encodeDESede(date, key)))

这次没怎么hook（汗）

// hook代码
Java.perform(function () {
    function showStacks() {
        console.log(
            Java.use("android.util.Log")
                .getStackTraceString(
                    Java.use("java.lang.Throwable").$new()
                )
        );
    }

    var HashMap = Java.use('java.util.HashMap');
    HashMap.put.implementation = function(a, b) {

        // 打印username的堆栈信息
        if (a.equals("username")) {
            showStacks();
            console.log("hashMap.put :", a, b);
        }

        console.log("put: ", a, b);
        return this.put(a, b);
    }

    var EncryptManager = Java.use("com.zcool.community.data.api.encrypt.EncryptManager");
    EncryptManager["encrypt"].implementation = function (map) {
        console.log(`EncryptManager.encrypt is called: map=${map}`);
        let result = this["encrypt"](map);
        console.log(`EncryptManager.encrypt result=${result}`);
        return result;
    };
});

这个软件的登录挺简单的，标准的DESede加密，以及方法和密钥在明文里，没有so层的逆向，请求也比较简单，没有时间戳部分。
